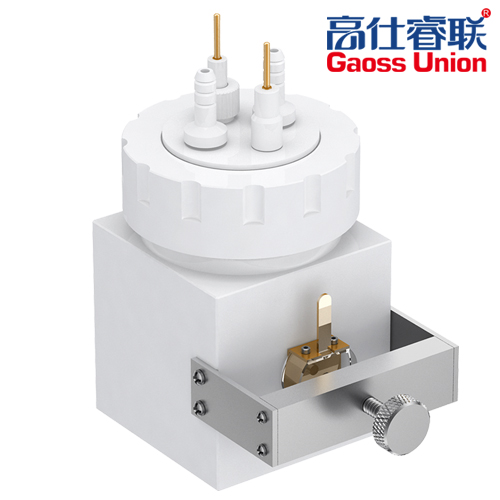

The electrolytic cell is a photoelectrochemical cell

The electrolytic cell window uses quartz glass, and the light transmittance is more than 95%

Non-standard samples can be used for the working electrode of electrolytic cell, but it is necessary to cover holes of a fixed area

The electrolytic cell has a fixed area of 1 square centimeter and can also be customized

The electrolytic cell is pressed against the working sample by screwing in the back screw, and the fixed area hole is pressed by the working electrode to achieve sealing of cell body

The standard area of electrolytic cell is 1 square centimeter, or it can be customized according to the requirements

The auxiliary electrode and reference electrode of electrolytic cell can be matched as required. The diameter of the electrode rod is 6mm, and rod must be extended.

The cell body material of electrolytic cell is PTFE

The electrolytic cell is often used in the three-electrode system.

The volume of electrolytic cell ranges from 30ml to 500ml, and can also be customized according to requirements.

The cell part of the electrolytic cell is designed with an external screw port, and the inner core of the cover adopts PTFE rotating 360 degrees, so that electrode accurately corresponds to the channel (generally the electrode is parallel to the light window), and the outer PTFE cover is tightened seal it.

The electrode part of electrolytic cell is sealed on PTFE plug, and sealing effect is achieved by pressing the O ring with sealing screw

The electrolytic cell is equipped with an aeration device that can be ventilated under the liquid surface, and the atmosphere is conducted according to different experiments.

The electrolytic cell can add a sampling port on the cell body, in which case additional costs are required.

The quartz plate of the electrolytic cell is removable and can be quickly replaced
