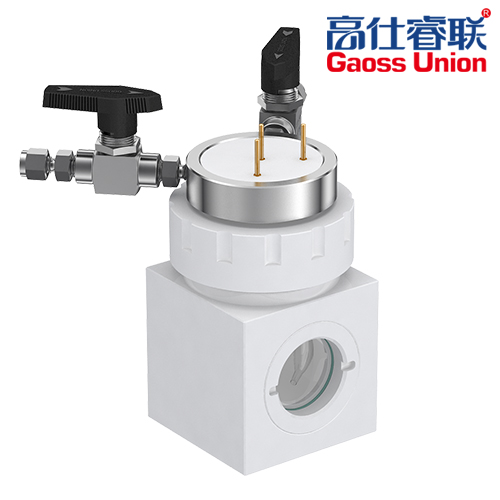

The electrolytic cell is a photoelectrochemical cell

The electrolytic cell window uses quartz glass, and the light transmittance is more than 95%

The working electrode, auxiliary electrode and reference electrode of electrolytic cell must be customized to make it compatible with this electrolytic cell.

The electrode part of electrolytic cell realizes internal insertion and extraction of electrode through the earphone jack on the cover, so that the electrode system is absolutely sealed.

The cell body material of the electrolytic cell is PTFE

The electrolytic cell is often used in the three-electrode system.

The volume of electrolytic cell ranges from 30ml to 500ml, and can also be customized according to requirements.

The cell part of electrolytic cell is designed with an external screw port, and the inner core of cover adopts PTFE rotating 360 degrees, so that the electrode accurately corresponds to the channel (generally the electrode is parallel to the light window), and outer PTFE cover is tightened seal it.

The electrolytic cell is equipped with an aeration device that can be ventilated under the liquid surface, and the atmosphere is conducted according to different experiments.

The electrolytic cell can add a sampling port on the cell body, in which case additional costs are required.

The quartz plate of electrolytic cell is removable and can be quickly replaced
