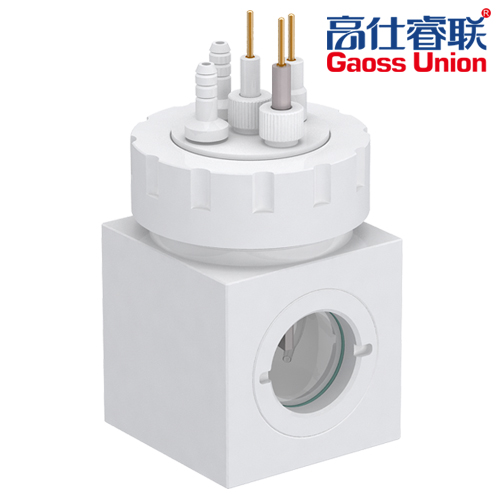

The electrolytic cell is a photoelectrochemical cell

The electrolytic cell window uses quartz glass, and the light transmittance is more than 95%

The working electrode, auxiliary electrode and reference electrode of the electrolytic cell can be matched according to needs.

The diameter of the equipped electrode rod is 6mm, which must be extended.

The cell body material of the electrolytic cell is PTFE

The electrolytic cell is often used in the three-electrode system.

The volume of electrolytic cell ranges from 30ml to 500ml, and can also be customized according to requirements.

The cell part of electrolytic cell is designed with an external screw port, and inner core of cover adopts PTFE rotating 360 degrees, so that electrode accurately corresponds to the channel (generally electrode is parallel to the light window), and outer cover made of PTFE is tightened Seal it.

The electrode part of electrolytic cell is sealed on the PTFE plug, and sealing effect is achieved by pressing the O ring with sealing screw

The electrolytic cell is equipped with an aeration device that can be ventilated under the liquid surface, and atmosphere is conducted according to different experiments.

The electrolytic cell can add a sampling port on the cell body, in which case additional costs are required.

The quartz plate of electrolytic cell is removable and can be quickly replaced
