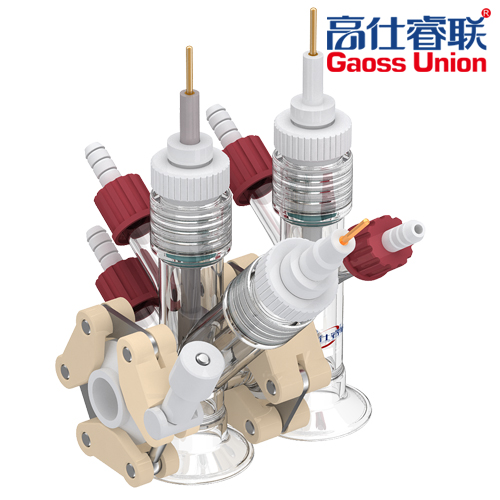

The electrolytic cell is improved on the basis of C007-10, and a light window is added

The light window of the electrolytic cell uses quartz, and the light transmittance is greater than 95%

The light window part of electrolytic cell and cell body are connected by a lock ring to ensure sealing, and the quartz light window can be replaced quickly and conveniently.

The working electrode, auxiliary electrode and reference electrode of electrolytic cell can be matched as required, and the electrodes must be extended

The cell body material of electrolytic cell is high borosilicate glass

The unique overhead layer design of electrolytic cell body effectively eliminates the solution concealment.

The electrolytic cell is often used in the three-electrode system, the volume of electrolytic cell is 10ml

The electrolytic cell is divided into two types of relatively sealed and jedily sealed electrolytic cell systems.

The cathode chamber (working electrode) and the anode chamber (comparative electrode) are separated by an ion membrane (user-supplied).

The two chambers are sealed with a chain to facilitate replacement the diaphragm, the reference electrode and the working electrode are in the same room, effectively reducing the R drop.

The glass sealing part of electrolytic cell is designed with an internal thread, and the sealing effect is achieved by tightening PTFE and squeezing the sealing ring.

The relative sealing of electrode part of the electrolytic cell is achieved on the PTFE plug, and the sealing effect is achieved by squeezing the O ring with sealing screw

The absolute sealing electrode part of electrolytic cell is to realize the internal insertion and extraction of electrode through the headphone jack on PTFE cover, so that the electrode system is absolutely sealed.

The electrolytic cell is equipped with an aeration device that can be ventilated under the liquid surface, and the atmosphere is conducted according to different experiments.

The electrolytic cell can add a sampling port on the cell body, in which case additional costs are required.

No valve can be added to the electrolytic cell. All absolute seals are realized by quick-connect. The diameter of the PTFE tube used for quick-connect is 3mm.
