The light window of electrolytic cell uses quartz, and the light transmittance is greater than 95%

The light window part of electrolytic cell and the cell body are connected by a lock ring to ensure sealing, and the quartz light window can be replaced quickly and conveniently

The electrolytic cell realizes atmosphere protection by adding valves and aeration devices.

The valve connected to the aeration device is the direction of air intake

The electrolytic cell is an absolutely sealed system and can be evacuated through a valve (less than -1Mpa).

The electrolytic cell can be slightly pressurized.

For safety reasons, the pressure should not be greater than 0.5MPa.

Due to process limitations, the inner wall glass of double-layer electrolytic cell is relatively weak, so pressurization is prohibited;

The working electrode, auxiliary electrode and reference electrode of electrolytic cell must be customized to make it compatible with this electrolytic cell.

The electrode part of the electrolytic cell realizes internal insertion and extraction of electrode through the earphone jack on the cover, so that electrode system is absolutely sealed.

The cell body of electrolytic cell is made of high borosilicate glass, and the single-layer cell body has an overhead layer design, which can effectively eliminate hidden solution

The electrolytic cell is often used in the three-electrode system.

The volume of the electrolytic cell ranges from 30ml to 500ml, and can also be customized according to requirements.

Please note that the minimum volume is 30ml

The electrolytic cell is an absolutely sealed electrolytic cell system.

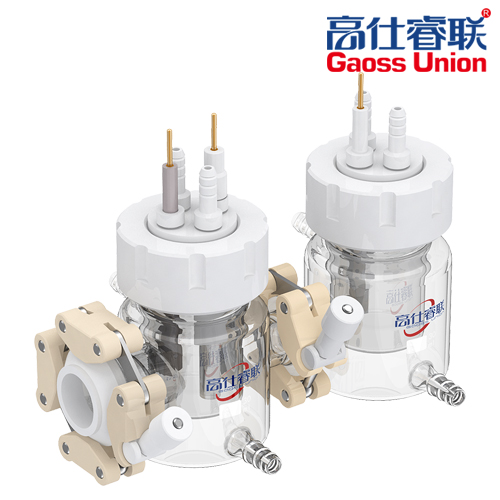

The cathode chamber (working electrode) and anode chamber (comparative electrode) are separated by an ion membrane (user-supplied).

The two chambers are sealed with a chain to facilitate the replacement of diaphragm.

 The reference electrode and The working electrode is in the same room, effectively reducing R drop

The glass sealing part of electrolytic cell is designed with an external screw port, and inner core part adopts 360 degree rotating PTFE, so that the electrode accurately corresponds to the light window, and is sealed by tightening the outer cover of the POM material.

The electrolytic cell is equipped with an aeration device that can be ventilated under the liquid surface, and different shapes of aeration devices are selected for the atmosphere according to different experiments. For example, straight type aeration for carbon reduction and L type aeration for nitrogen reduction.

The electrolytic cell can add a sampling port on the cell body, in which case additional costs are required.

The electrolytic cell is divided into single layer and double layer

The double layer adds a constant temperature water bath function on the basis of a single layer.

By continuously circulating circulating constant temperature water in the jacket layer of the electrolytic cell, the measured solution in the electrolytic cell achieves a constant temperature effect.
