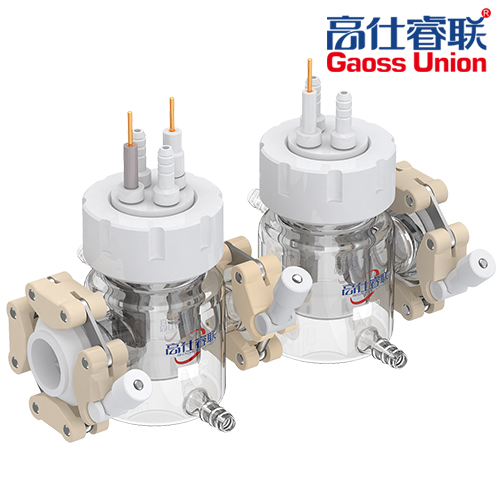

The electrolytic cell is upgraded on the basis of C023-1, and a light window is added to make the cathode and anode chambers have light windows.

The light window of electrolytic cell uses quartz, and the light transmittance is greater than 95%

The light window part of the electrolytic cell and cell body are connected by a lock ring to ensure sealing, and the quartz light window can be replaced quickly and conveniently.

The working electrode, auxiliary electrode and reference electrode of the electrolytic cell can be matched as required, and the electrodes must be extended.

The cell body of electrolytic cell is made of high borosilicate glass, and the single-layer cell body has an overhead layer design, which can effectively eliminate the hidden solution

The electrolytic cell is often used in the three-electrode system.

The volume of the electrolytic cell ranges from 30ml to 500ml, and can also be customized according to requirements.

The electrolytic cell is a relatively sealed electrolytic cell system. The cathode chamber (working electrode) and anode chamber (comparative electrode) are separated by an ion membrane (user-supplied).

The two chambers are sealed with a chain to facilitate the replacement of the diaphragm. The reference electrode is working electrode is in the same room, effectively reducing the R drop.

The glass sealing part of electrolytic cell is designed with an external screw port, and inner core adopts PTFE rotating 360 degrees, so that the electrode accurately corresponds to the channel (generally the electrode is parallel to the membrane), and is sealed by tightening the outer cover of the POM material.

The electrode part of electrolytic cell is sealed on the PTFE plug, and sealing effect is achieved by pressing the O ring with the sealing screw

The electrolytic cell is equipped with an aeration device that can be ventilated under liquid surface, and the atmosphere is carried out according to different experiments, such as straight aeration for carbon reduction and L-type aeration for nitrogen reduction.

The electrolytic cell can add a sampling port on the cell body, in which case additional costs are required.

The electrolytic cell is divided into single-layer and double-layer forms

The double layer adds a constant temperature water bath function on the basis of a single layer. By continuously circulating circulating constant temperature water in the jacket layer of the electrolytic cell, the measured solution in the electrolytic cell achieves a constant temperature effect.
