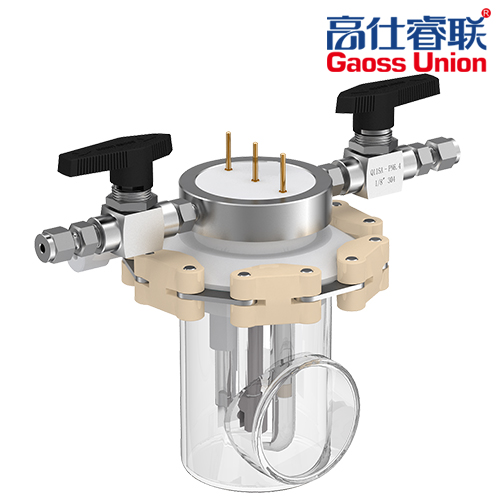

The electrolytic cell has been improved on the basis of C018-1

The electrode part of the electrolytic cell is sealed through the headphone jack on the cover to realize the internal insertion and extraction of the electrode, so that the electrode system is absolutely sealed.

The electrode of electrolytic cell needs to be purchased separately, but must be matched with the cell.

The cell body of electrolytic cell is welded by full quartz fusion method and refuses to stick

The light transmittance of quartz in the electrolytic cell is above 95%

The lid of electrolytic cell is PTFE

The electrolytic cell can be equipped with a gas inlet and outlet device

The reference silver silver chloride electrode of the electrolytic cell generally selects a silver silver chloride electrode (3.8 mm diameter), and the contrast electrode is a platinum wire electrode with a diameter 0.5 mm or a platinum plate electrode, a working electrode, and a glassy carbon electrode 3 mm.

The working electrode of electrolytic cell can also be replaced with a gold plate, a platinum plate or other electrodes with a diameter of 3mm according to the requirements

The electrolytic cell absolute sealing system

The quartz sealing part of electrolytic cell is designed with a flange port, and the cover is made of PTFE and the sealing ring is locked by a locking ring to seal.
