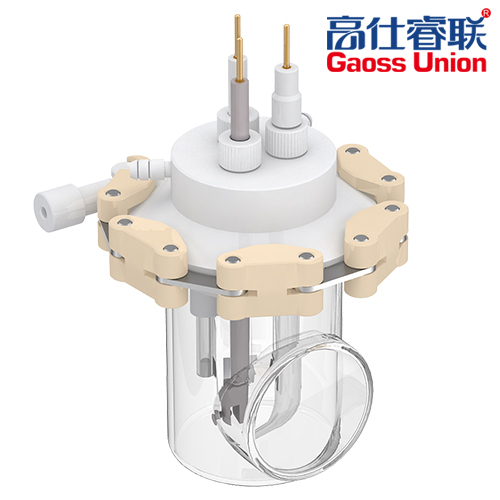

Location:Home > Products > Ordinary cell > C018 Series Full Quartz--Relative Sealing of Side Illumination Electrochemical Cell
Related
Introduction
The electrolytic cell has been improved on the basis of C017, and side of cell body has increased side lighting
The cell body of electrolytic cell is welded by full quartz fusion method and refuses to stick
The light transmittance of quartz in electrolytic cell is above 95%
The lid of the electrolytic cell is PTFE
The electrolytic cell can be equipped with a gas inlet and outlet device
The reference electrode of the electrolytic cell generally selects a conventional reference electrode with a diameter of 6 mm.
For Counter electrode of the electrolytic cell, the electrode with a rod diameter of 6 mm can be selected
The working electrode of electrolytic cell can be selected from the electrode or electrode clamp with a rod diameter 6mm
The electrolytic cell is relatively sealed
The quartz sealing part of electrolytic cell is designed with a flange port, and the cover is made of PTFE and sealing ring is locked by a locking ring to seal.
The electrode part of electrolytic cell is sealed on the PTFE plug, and sealing effect is achieved by pressing the O ring with the sealing screw
For absolute sealing system, please refer to C018-2
