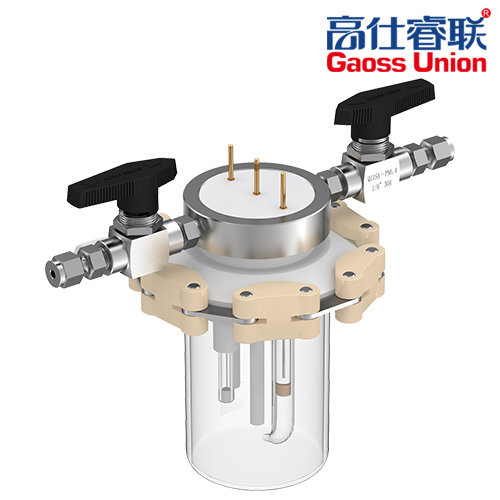

The electrode part of electrolytic cell realizes internal insertion and extraction of electrode through the earphone jack on the cover, so that the electrode system is absolutely sealed.

The electrode of electrolytic cell needs to be purchased separately, but must be matched with the cell.

The cell body of electrolytic cell is welded by full quartz fusion method and refuses to stick

The light transmittance of quartz in the electrolytic cell is above 95%

The lid of electrolytic cell is PTFE

The electrolytic cell can be equipped with a gas inlet and outlet device

The reference electrode of electrolytic cell generally selects silver-silver chloride (Ag/AgCl) electrode (diameter 3.8mm).

The counter electrode of the electrolytic cell is a platinum wire electrode with a diameter of 0.5 mm, or a platinum sheet electrode

The working electrode of electrolytic cell is a glassy carbon electrode, and the working electrode can be replaced with a gold disk, a platinum disk or other electrode clips with a diameter of 3 mm according to the requirements.

The electrolytic cell absolute sealing system

The quartz sealing part of electrolytic cell is designed with a flange port, and the cover is made of PTFE and the sealing ring is locked by a locking ring to seal.
