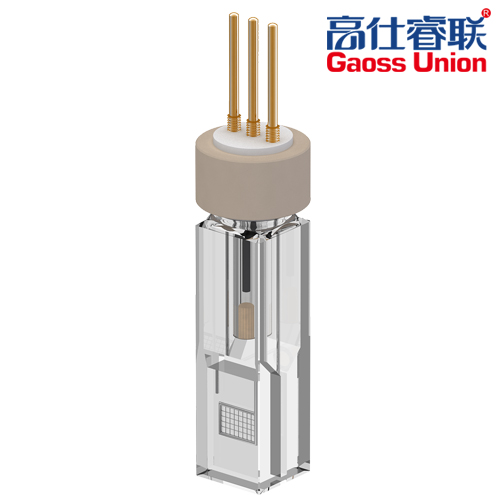

Location:Home > Products > Ordinary cell > C013 series full quartz-photoelectrochemical cell spectroelectrochemical cell
Related
Introduction
The electrolytic cell body is polished with all quartz, and the four sides are transparent to refuse to stick
The light transmittance of quartz in electrolytic cell is above 95%
The lid of electrolytic cell is PEEK
The electrolytic cell is equipped with electrodes, a reference silver-silver chloride electrode (diameter 3.0mm), a platinum wire electrode diameter 0.5mm, and a working electrode platinum mesh electrode (6*7mm)
The working electrode of the electrolytic cell can also be replaced with a glass carbon and gold disk with a diameter of 3mm according to requirements...
The gap size of electrolytic cell is 8*6.5*1mm
The electrolytic cell is a square cell with a size 12*12mm
The electrolytic cell absolute sealing system
The quartz sealing part of the electrolytic cell is designed with an external thread, and inner core is made of PEEK material that rotates 360 degrees, so that electrode accurately corresponds to the gap, and is sealed by tightening outer cover of PEEK material.
The electrode part of the electrolytic cell is sealed on PTFE plug, and the sealing effect is achieved by pressing the O ring with sealing screw
