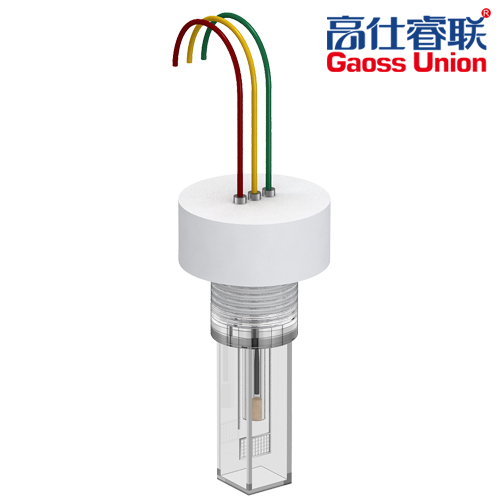

Location:Home > Products > Ordinary cell > C013 series full quartz-photoelectrochemical cell spectroelectrochemical cell
Related
Introduction
The electrolytic cell body is polished with all quartz, and four sides are transparent to refuse to stick
The light transmittance of quartz in the electrolytic cell is above 95%
The lid of electrolytic cell is PTFE
The electrolytic cell is equipped with a gas inlet and outlet device
The electrolytic cell is equipped with electrodes, a reference silver-silver chloride electrode (3.0 mm diameter), a platinum wire electrode diameter 0.5 mm, and a working electrode glassy carbon electrode of 3 mm.
The working electrode of the electrolytic cell can also be replaced with a gold plate, a platinum disc or other electrodes with diameter 3mm according to the requirements
The electrolytic cell is a square cell with size 12*12mm
The electrolytic cell absolute sealing system
The quartz sealing part of electrolytic cell is designed with an internal screw port, and is sealed by screwing the cover made of PTFE material.
The electrode part of electrolytic cell realizes internal insertion and extraction of electrode through earphone jack on the cover, so that the electrode system is absolutely sealed.
