Location:Home > Products > Ordinary cell > C013 series full quartz-photoelectrochemical cell spectroelectrochemical cell
Related
Introduction

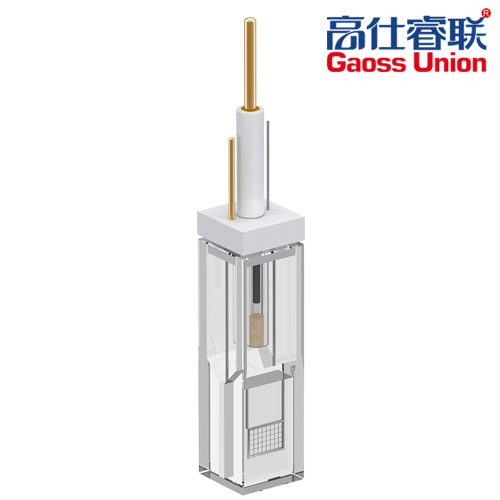

The electrolytic cell body is polished with all quartz, and the four sides are transparent to refuse to stick
The light transmittance of quartz in electrolytic cell is above 95%
The lid of electrolytic cell is PTFE
The electrolytic cell is equipped with electrodes, a reference silver-silver chloride electrode (diameter 3.8mm), a platinum wire electrode with a diameter of 0.5mm, a working electrode platinum mesh electrode (6*7mm)
The working electrode of the electrolytic cell can also be replaced with glass carbon and gold discs with a diameter of 3mm according to the requirements...
The gap size of electrolytic cell is 8*6.5*1mm
The electrolytic cell is a square cell with a size of 12*12mm
For sealing system, please refer to 013-2
