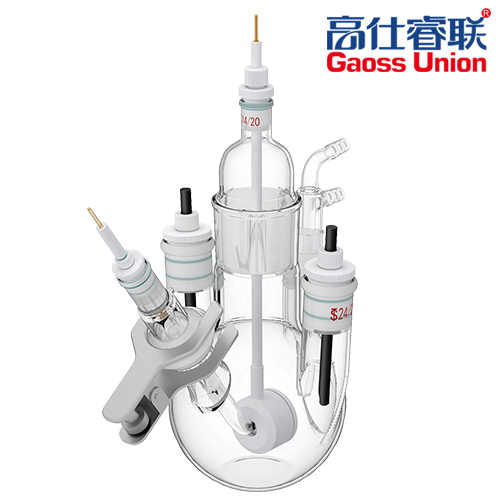

The electrolytic cell has an adjustable angle salt bridge (Lujin capillary) to make the reference electrode align with the corrosion sample by adjusting the angle, which reduces the R drop more effectively.

The electrolytic cell should avoid chloride ions in the corrosion laboratory, so the solution filled in the salt bridge is a saturated potassium nitrate solution.

The working electrode of the electrolytic cell is equipped with a sample support electrode, which can be replaced according to its own requirements. The sample diameter is 14mm and the fixed area is 1 square centimeter.

Configuration: electrolytic cell body, F-type air inlet, salt bridge, liquid seal, PTFE stopper, sample support reference electrode, graphite rod electrode.

The cell body material of the electrolytic cell is high borosilicate glass

The electrolytic cell is a relatively sealed electrolytic cell system, which is commonly used in the three-electrode system. The common volume of the electrolytic cell is 500ml and 1000ml, which can also be customized according to requirements.

The glass part of the electrolytic cell adopts a frosted mouth to cooperate with the inverted conical Teflon cover to seal the pool and the cover.

The electrode part of the electrolytic cell is sealed on the PTFE plug, and the sealing effect is achieved by pressing the O ring with the sealing screw

The electrolytic cell is equipped with F-type air intake that can be ventilated above and below the liquid surface, and the atmosphere is protected according to the experiment. When the experiment starts, please stop the ventilation below the liquid surface, and only keep the ventilation on the liquid surface.

The electrolytic cell is divided into single-layer and double-layer forms

The double layer adds a constant temperature water bath function on the basis of a single layer. By continuously circulating circulating constant temperature water in the jacket layer of the electrolytic cell, the measured solution in the electrolytic cell achieves a constant temperature effect.

If a double-layer electrolytic cell needs to add a thermometer for temperature reading, it is necessary to add a port above the cell body of the electrolytic cell to change the five-port cell into a six-port cell, at which time an additional cost is required.

Electrolysis cell cover material: PTFE, the size of the cover varies according to volume of the electrolytic cell

Scope of application: It can be used to test and determine metal samples in corrosive environments. It can ensure that the test of a group of metal samples in a liquid environment is fast and consistent. It is suitable for most electrical appliances used in corrosion tests.

On chemical instruments, it can be used in corrosive environment (except HF), room temperature and high temperature.
