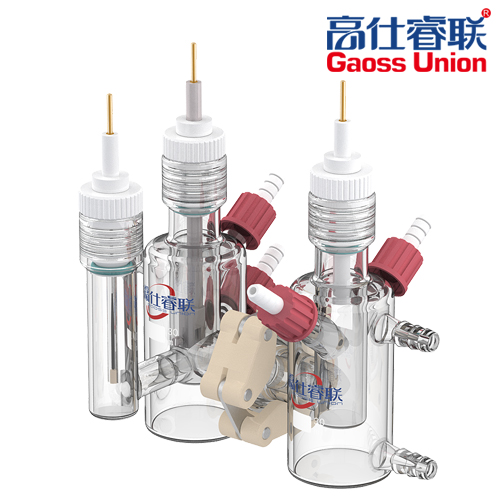

The electrolytic cell is modified on the basis of C007-10, and Lujin capillary is added at the connection between reference electrode chamber and working electrode chamber

The working electrode, auxiliary electrode and reference electrode of electrolytic cell can be matched as required, and the electrodes must be extended

The cell body of the electrolytic cell is made of high borosilicate glass, and single-layer cell body has an overhead layer design, which can effectively eliminate the hidden solution

The electrolytic cell is often used in three-electrode system, volume of electrolytic cell is 10ml

The electrolytic cell is divided into two types of relatively sealed and absolutely sealed electrolytic cell systems.

The cathode chamber (working electrode) and anode chamber (comparative electrode) are separated by an ion membrane (user-supplied).

The two chambers are sealed and linked by chains for easy replacement The diaphragm, the reference electrode and working electrode are in the same room, effectively reducing the R drop.

The glass sealing part of electrolytic cell is designed with an internal thread, and the sealing effect is achieved by tightening PTFE and squeezing the sealing ring.

The relative sealing of electrode part of electrolytic cell is achieved on PTFE plug, and sealing effect is achieved by squeezing the O ring with the sealing screw

The absolute sealing of electrode part of electrolytic cell is to realize internal insertion and extraction of electrode through the headphone jack on the PTFE cover, so that electrode system is absolutely sealed.

The electrolytic cell is equipped with an aeration device that can be ventilated under the liquid surface, and the atmosphere is conducted according to different experiments.

The electrolytic cell can add a sampling port on cell body, in which case additional costs are required.

No valve can be added to the electrolytic cell.

All absolute seals are realized by quick-connect. The diameter of the PTFE tube used for quick-connect is 3mm.
