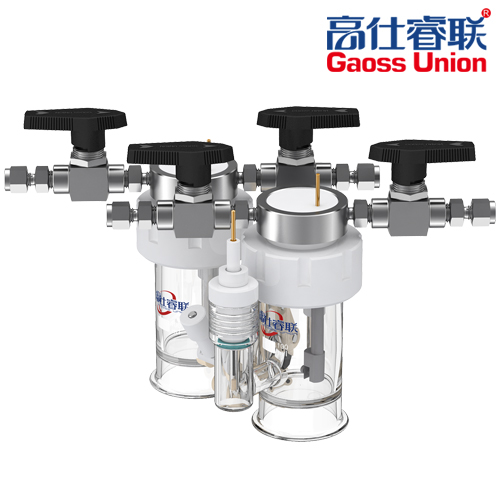

The electrolytic cell is upgraded on the basis of C008

The electrolytic cell realizes atmosphere protection by adding valves and aeration devices.

The valve connected to the aeration device is the direction of air intake

The electrolytic cell is an absolutely sealed system and can be evacuated through a valve (less than -1Mpa). The electrolytic cell can be slightly pressurized. For safety reasons, the pressure should not be greater than 0.5MPa.

Due to process limitations, inner wall glass of double-layer electrolytic cell is relatively weak, so pressurization is prohibited

The working electrode, auxiliary electrode and reference electrode of electrolytic cell must be customized to make it compatible with this electrolytic cell.

The reference electrode of electrolytic cell and working electrode are connected by a Lujin capillary to effectively reduce the R drop.

The pore diameter of tip of the electrolytic cell Lujin capillary extending into working electrode chamber cannot be greater than 0.2 mm.

Agar can be added to the Lujin capillary of electrolytic cell to reduce electrolyte flow rate.

The reference electrode chamber of electrolytic cell is sealed with an internal thread, and it must be sealed when used to effectively avoid leakage of liquid between the reference electrode chamber and the working electrode chamber due to connector effect.

The cell body material of electrolytic cell is high borosilicate glass

The electrolytic cell is often used in three-electrode system.

The volume of electrolytic cell ranges from 10ml to 500ml, and can also be customized according to requirements.

The electrolytic cell is an absolutely sealed electrolytic cell system.

The cathode chamber (working electrode) and anode chamber (comparative electrode) are separated by an ion membrane (user-supplied).

The two chambers are sealed with a chain to facilitate replacement of diaphragm.

The glass sealing part of working electrode chamber and contrast electrode chamber of electrolytic cell is designed with an external thread, and inner core is made of PTFE rotating 360 degrees, so that electrode accurately corresponds to channel (generally electrode is parallel to membrane).

The outer cover of the material is sealed.

The electrolytic cell is equipped with an aeration device that can be ventilated under liquid surface, and different shapes of aeration devices are selected for atmosphere according to different experiments.

For example, straight type aeration for carbon reduction and L type aeration for nitrogen reduction.

The electrolytic cell can add a sampling port on the cell body, in which case additional costs are required.

The 10 ml of electrolytic cell is internally threaded, and its appearance is basically the same as C008-10 series.
