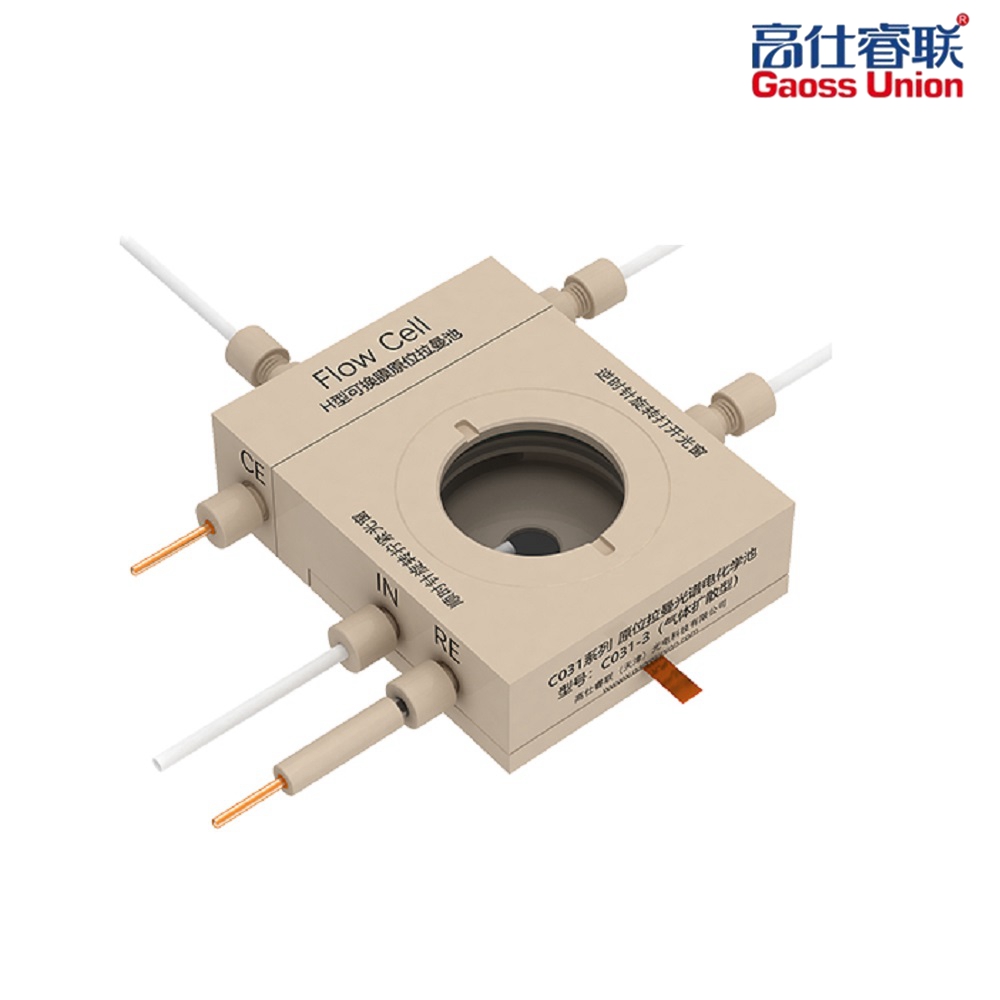

The in-situ electrochemical cell is designed to study the in-situ spectral and morphological changes of electrode materials in electrochemical experiments. The working electrode (WE) is placed directly below the perspective window, allowing the optical instrument to see the working electrode through the quartz window.

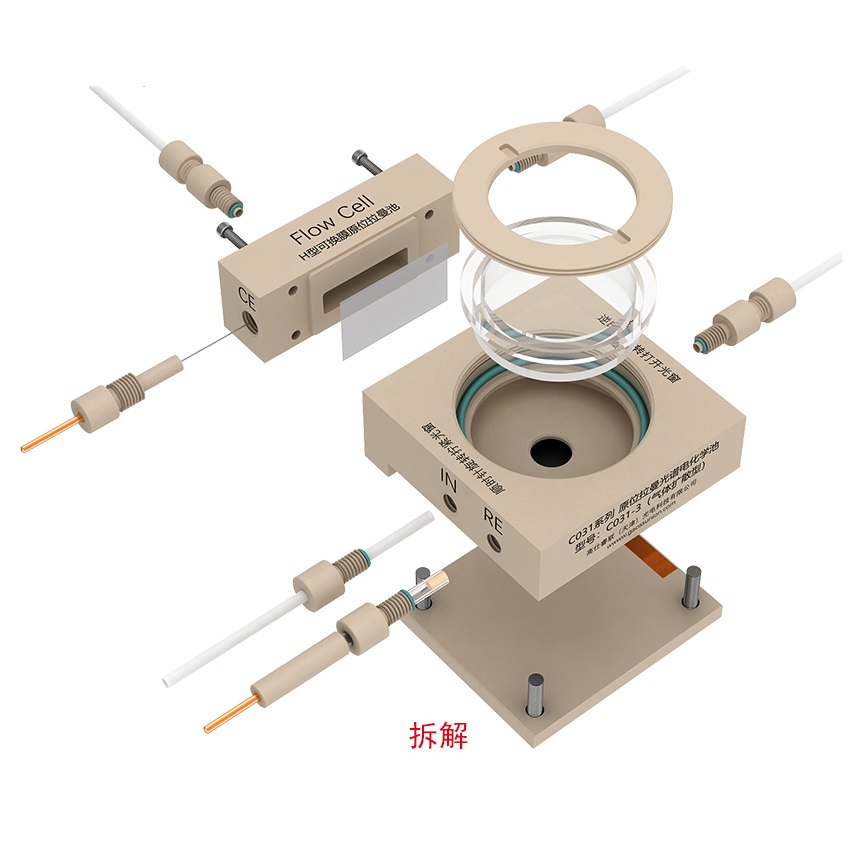

•The main body of the electrochemical cell is made of PEEK material; It can be quickly assembled and disassembled, and it is easy to clean.

•The two chambers of the electrochemical cell are sealed by screws to facilitate the replacement of the diaphragm, and the cathode chamber and the anode chamber are isolated by ion membrane (provided by the user), which effectively avoids the influence of the anode on the cathode.

•The reference electrode of the electrochemical cell is in the same chamber as the working electrode, which effectively reduces the R drop.

• The cell can be used for in-situ electrochemical testing of flow systems or for simple filling of electrolytes by injection.

• Distance between the working electrode and the light window: <6mm

• Window diameter: 37mm

• Working electrode area 1cm²; Available on request

• Support sheet working electrodes (gold, platinum, glass, ITO, FTO, carbon paper, etc.)

•AgCl reference electrode and imported graphite rod counter electrode are standard by default;

It can be replaced with AG+ reference electrode and platinum wire counter electrode without price difference
