Introduction

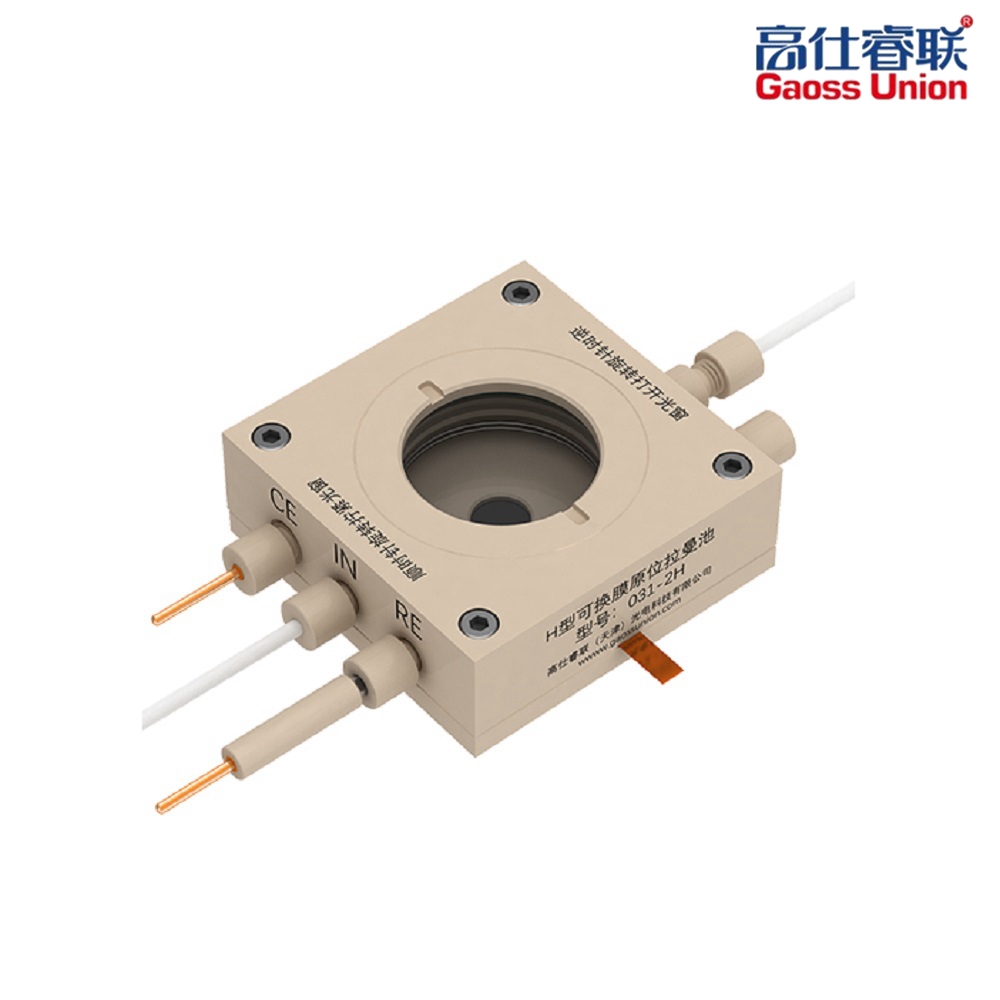

• In-situ electrochemistry cells are designed to study the in-situ spectral and morphological changes of electrode materials in electrochemical experiments. The working electrode (WE) is placed just below the perspective window. This allows the optical instrument to see the working electrode through the quartz window.
•The main body of the electrochemical cell is made of PEEK; It can be quickly assembled and disassembled, and it is easy to clean.
• The cell can be used for in-situ electrochemical testing of flow systems or for simple filling of electrolytes by injection.
• Window diameter: 37mm
• Distance between the working electrode and the light window: <6mm
• Working electrode area 1cm²; Available on request
• The working electrode of this electrochemical cell is a sheet electrode (gold sheet, platinum sheet, glass carbon sheet, ITO, FTO, carbon paper, etc.) and needs to be purchased separately.
