The in-situ electrochemical cell is designed to study the in-situ spectral and morphological changes of electrode materials in electrochemical experiments. The working electrode (WE) is placed directly below the perspective window, allowing the optical instrument to see the working electrode through the quartz window.

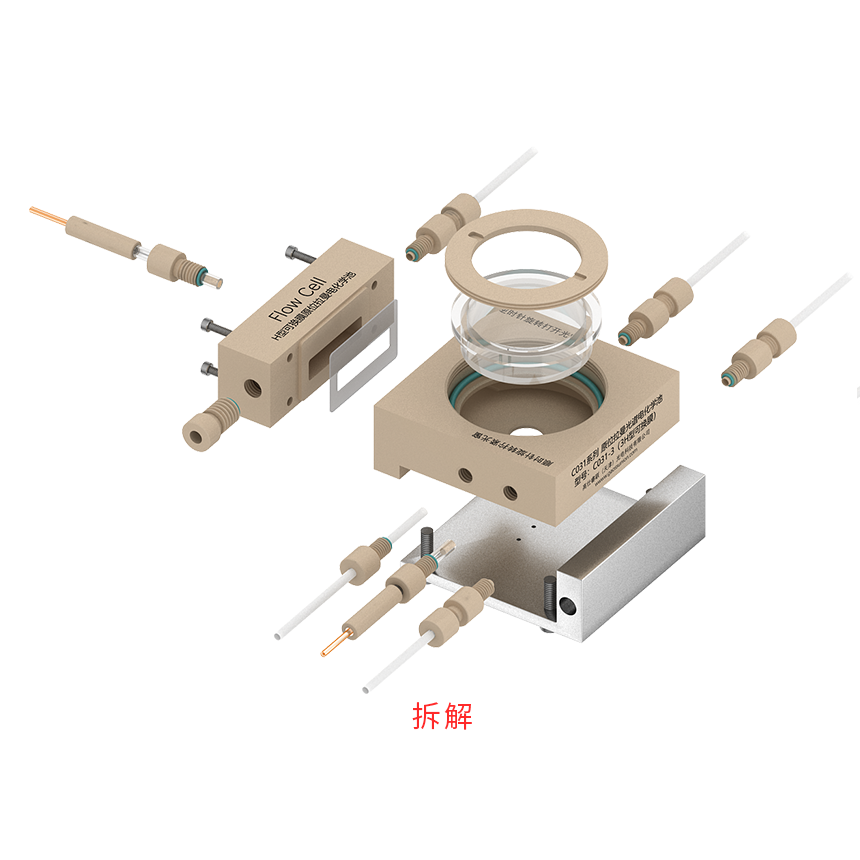

•The two chambers of the electrochemical cell are sealed by screws to facilitate the replacement of the diaphragm, and the cathode chamber and the anode chamber are isolated by ion membrane (provided by the user), which effectively avoids the influence of the anode on the cathode.

•The electrochemical cell adds a gas channel in the lower layer of the cathode chamber, so that the electrochemical cell has a gas diffusion function

• The cell can be used for in-situ electrochemical testing of flow systems or for simple filling of electrolytes by injection.

• Distance between the working electrode and the light window: <6mm

• Window diameter: 37mm

• Working electrode area 1cm²; Available on request

•The working electrode usually uses a gas diffusion electrode to cooperate with the gas channel, and can also use sheet materials such as metal sheet, glass carbon sheet, ITO, FTO and other working electrodes. The working electrode material is sold separately
