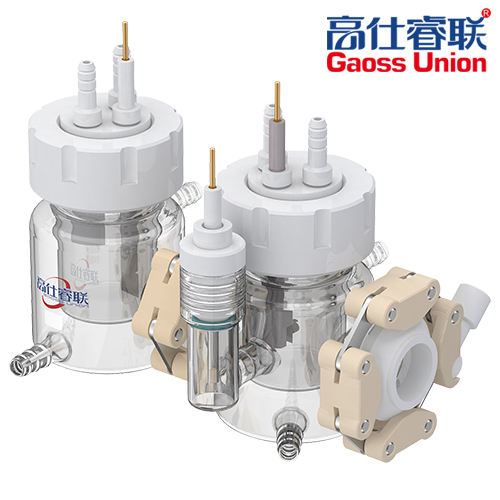

The electrolytic cell is upgraded on the basis of C008-1, adding a light window

The light window of electrolytic cell uses quartz, and the light transmittance is greater than 95%

The light window part of electrolytic cell and cell body are connected by a lock ring to ensure the sealing and facilitate replacement of quartz light window.

The electrolytic cell separates reference electrode and the working electrode, and is connected by a Lujin capillary to effectively reduce the R drop.

The diameter of the tip part of electrolytic cell Lujin capillary extending into working electrode chamber is less than 0.2mm. Agar can be added to Lujin capillary of electrolytic cell to reduce electrolyte flow rate.

The reference electrode chamber of electrolytic cell is sealed with an internal thread, and it must be sealed when used to effectively avoid the leakage of liquid between reference electrode chamber and working electrode chamber due to the connector effect.

The working electrode, auxiliary electrode and reference electrode of electrolytic cell can be matched as required, and the electrodes must be extended

The cell body of electrolytic cell is made of high borosilicate glass, and single-layer cell body has an overhead layer design, which can effectively eliminate the hidden solution

The electrolytic cell is often used in the three-electrode system.

The volume of electrolytic cell ranges from 30ml to 500ml, and can also be customized according to requirements.

The glass part of reference electrode chamber of electrolytic cell is designed with internal thread

The electrolytic cell is a relatively sealed electrolytic cell system.

The cathode and anode chambers are separated by an ion membrane (provided by the user).

The two chambers are sealed with a chain to facilitate the replacement of the diaphragm.

The glass sealing part of working electrode chamber and contrast electrode chamber of electrolytic cell is designed with an external thread, and the inner core is made of PTFE rotating 360 degrees, so that the electrode accurately corresponds to the channel (generally the electrode is parallel to the membrane). The outer cover of the material is sealed.

The electrode of electrolytic cell is partially sealed on a PTFE plug, and the O-ring is pressed by a sealing screw to achieve a sealing effect.

The electrolytic cell is equipped with an aeration device that can be ventilated under the liquid surface, and different shapes of aeration devices are selected for atmosphere according to different experiments.

For example, straight type aeration for carbon reduction and L type aeration for nitrogen reduction.

The electrolytic cell can add a sampling port on cell body, in which case additional costs are required.

The electrolytic cell is a relatively sealed system.

 If an absolute sealing method is required, a valve needs to be added on the lid of the electrolytic cell. Please refer to C025-2 model.

The electrolytic cell is divided into single-layer and double-layer forms

The double layer adds a constant temperature water bath function on the basis of a single layer.

By continuously circulating circulating constant temperature water in the jacket layer of the electrolytic cell, the measured solution in the electrolytic cell achieves a constant temperature effect.

The 10ml of electrolytic cell is designed with internal thread, please refer to "C025-10" for details
