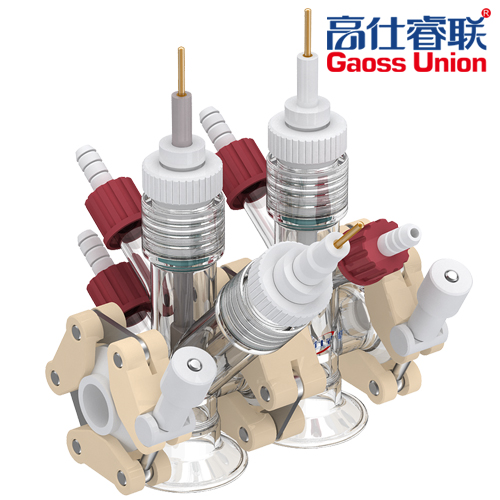

The electrolytic cell is upgraded on the basis of  C023-10, and a light window is added to make cathode and anode chambers have light windows.

The light window of electrolytic cell uses quartz, and the light transmittance is greater than 95%

The light window part of electrolytic cell and cell body are connected by a lock ring to ensure sealing, and the quartz light window can be replaced quickly and conveniently.

The working electrode, auxiliary electrode and reference electrode of the electrolytic cell can be matched as required, and the electrodes must be extended

The cell body material of electrolytic cell is high borosilicate glass

The unique overhead layer design of electrolytic cell body effectively eliminates the solution concealment.

The electrolytic cell is often used in three-electrode system, the volume of electrolytic cell is 10ml

The electrolytic cell is divided into two types of relatively sealed and absoluted sealed electrolytic cell systems.

The cathode chamber (working electrode) and anode chamber (comparative electrode) are separated by an ion membrane (user-supplied).

The two chambers are sealed and linked by a chain for easy replacement.

 The diaphragm, the reference electrode and working electrode are in the same room, effectively reducing the R drop.

The glass sealing part of electrolytic cell is designed with an internal thread, and the sealing effect is achieved by tightening PTFE and squeezing sealing ring.

The relative sealing of electrode part of electrolytic cell is achieved on the PTFE plug, and the sealing effect is achieved by squeezing the O ring with the sealing screw

The absolute sealing of electrode part of electrolytic cell is to realize internal insertion and extraction of electrode through the headphone jack on PTFE cover, so that the electrode system is absolutely sealed.

The electrolytic cell is equipped with an aeration device that can be ventilated under the liquid surface, and the atmosphere is conducted according to different experiments.

The electrolytic cell can add a sampling port on the cell body, in which case additional costs are required.

No valve can be added to the electrolytic cell.

All absolute seals are realized by quick-connect. The diameter of PTFE tube used for quick-connect is 3mm.
