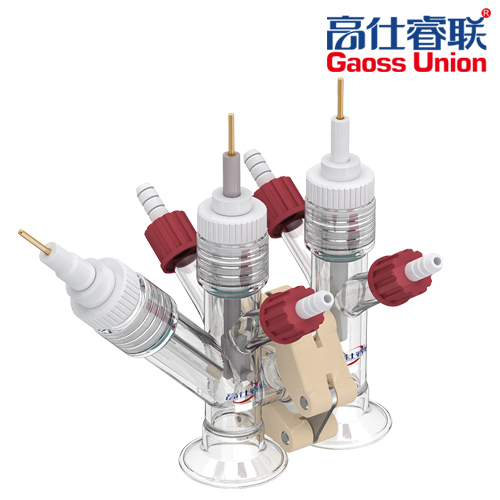

The working electrode, auxiliary electrode and reference electrode of the electrolytic cell can be matched as required, and the electrodes must be extended

The cell body of electrolytic cell is made of high borosilicate glass, and the single-layer cell body has an overhead layer design, which can effectively eliminate the hidden solution

The electrolytic cell is often used in three-electrode system, volume of the electrolytic cell is 10ml

The electrolytic cell is divided into two types relatively sealed and absolute sealed electrolytic cell systems. The cathode chamber (working electrode) and anode chamber (comparative electrode) are separated by an ion membrane (user-supplied).

The two chambers are sealed and linked by chains for easy replacement The diaphragm, the reference electrode and the working electrode are in the same room, effectively reducing the R drop.

The glass sealing part of electrolytic cell is designed with an internal thread, and sealing effect is achieved by tightening PTFE and squeezing the sealing ring.

The relative sealing of the electrode part of the electrolytic cell is achieved on the PTFE plug, and  sealing effect is achieved by squeezing the O ring with sealing screw

The absolute sealing of electrode part of electrolytic cell is to realize internal insertion and extraction of electrode through headphone jack on the PTFE cover, so that the electrode system is absolutely sealed.

The electrolytic cell is equipped with an aeration device that can be ventilated under the liquid surface, and atmosphere is conducted according to different experiments.

The electrolytic cell can add a sampling port on the cell body, in which case additional costs are required.

No valve can be added to electrolytic cell. All absolute seals are realized by quick-connect.

The diameter PTFE tube used for quick-connect is 3mm.
