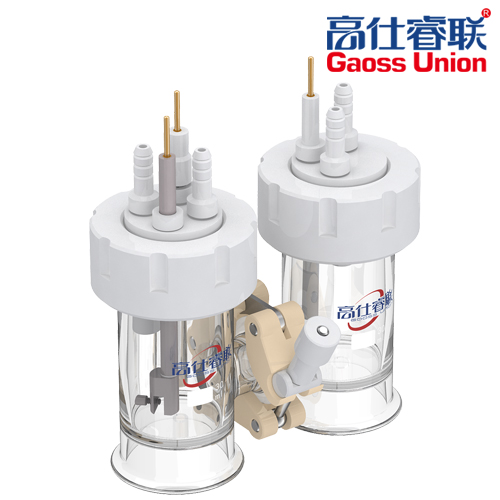

The working electrode, auxiliary electrode and reference electrode of electrolytic cell can be matched as required, and electrodes must be extended.

The cell body of electrolytic cell is made of high borosilicate glass, and the single-layer cell body has an overhead layer design, which effectively eliminates solution concealment.

The electrolytic cell is often used in three-electrode system.

The volume of electrolytic cell ranges from 30ml to 500ml, and can also be customized according to requirements.

The electrolytic cell is a relatively sealed electrolytic cell system.

The cathode chamber (working electrode) and anode chamber (comparative electrode) are separated by an ion membrane (user-supplied).

The two chambers are sealed with a chain to facilitate the replacement of diaphragm.

The reference electrode is working electrode in the same room, effectively reducing the R drop.

The glass sealing part of the electrolytic cell is designed with an external screw port, and inner core adopts PTFE rotating 360 degrees, so that electrode accurately corresponds to channel (generally the electrode is parallel to the membrane), and is sealed by tightening the outer cover of POM material.

The electrode of electrolytic cell is partially sealed on a PTFE plug, and the O-ring is pressed by a sealing screw to achieve a sealing effect.

The electrolytic cell is equipped with an aeration device that can be ventilated under the liquid surface, and atmosphere is carried out according to different experiments, such as straight aeration for carbon reduction and L-type aeration for nitrogen reduction.

The electrolytic cell can add a sampling port on cell body, in which case additional costs are required.

The electrolytic cell is a relatively sealed system. If you need to use an absolute sealing method, please refer to model C007-2.

The 10ml of electrolytic cell is designed with internal thread, and its appearance is completely different from C007 series. For details, please refer to "C007-10"

The electrolytic cell is divided into two types of single layer and double layer,

The double layer adds the constant temperature water bath function on the basis of single layer.

 By continuously circulating circulating constant temperature water in the jacket layer of electrolytic cell, the measured solution in electrolytic cell reaches constant temperature effect.
