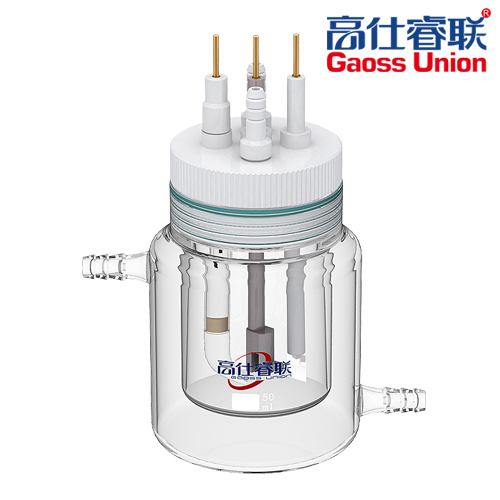

Cell body material: high borosilicate glass

The electrolytic cell is a relatively sealed electrolytic cell system, often used in three-electrode system.

The volume of electrolytic cell ranges from 30ml to 500ml, and can also be customized according to requirements.

The glass part of the electrolytic cell squeezes the O ring through the thread of cover to achieve the sealing of cell and cover, and electrode part also squeezes the O ring through sealing screw to achieve sealing effect.

The electrolytic cell is equipped with sand core salt bridge or Lujin capillary (one of them).

The electrolytic cell is equipped with air inlet and outlet holes, and the intake air contains an aeration device, which protects atmosphere according to different experiments.

The electrolytic cell is a relatively sealed system.

The electrolytic cell is divided into two types of single layer and double layer,

The double layer adds a constant temperature water bath function on basis of a single layer.

By continuously circulating circulating constant temperature water in jacket layer of electrolytic cell, the measured solution in electrolytic cell achieves a constant temperature effect.

The lid material of electrolytic cell: PTFE, the size of lid is different according to volume of  electrolytic cell, the diameter of inner screw cover is basically divided into 35mm, 50mm, 60mm, 70mm

The electrolytic cell breaks through restriction traditional five-port electrolytic cell caliber to the large platinum electrode, leading electrolytic cell into era of big mouth.

The electrolytic cell can be used with rotating disc electrodes. However, the sealing of cell is also affected accordingly, and structure of Lid has also changed, which requires additional

cost.
