Introduction

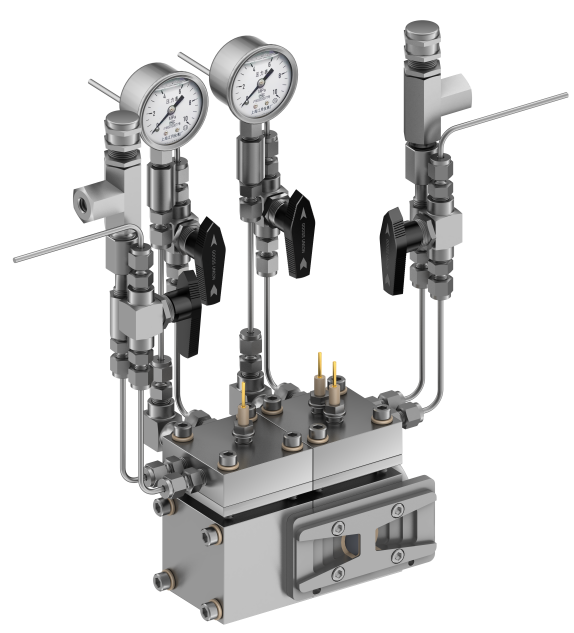

The reaction cell is based on the technology of the atmospheric H-type in-situ infrared test cell, and the high-pressure resistance direction has been reformed, and the whole pool body is made of high-purity titanium material, and the stainless steel bolts are fastened and sealed; The electrode is internally fixed, which is safe and reliable.
• Infrared window material: monocrystalline silicon (support calcium fluoride zinc selenide window customization)
• Shell material: high purity titanium
• Cavity material: high-purity PTFE
• Chamber volume: 20ml+20ml
• Observation window material: high pressure sapphire
• Maximum withstand pressure: 6Pma
•The reaction cell is equipped with three electrodes resistant to high voltage electrochemistry as standard: glassy carbon electrode clamp, silver chloride electrode, and platinum sheet electrode
Note: The reaction cell needs to be used with an optical path
