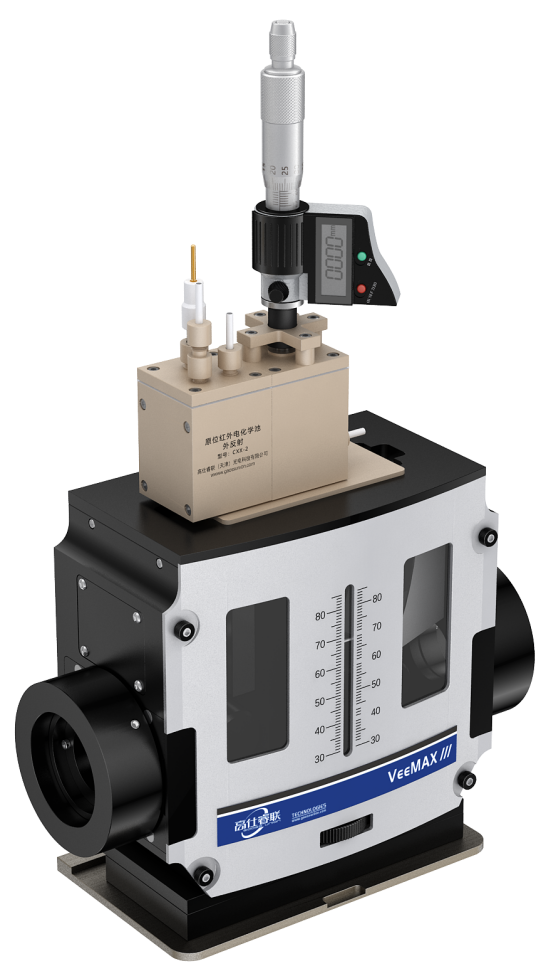

Location:Home > Products > In-situ cells > Electrochemical in situ > In-situ IR test cell（H-type）
Related
Introduction
• Working electrode: Monocrystalline silicon
• Contrast electrode: graphite
• Reference electrode: Silver silver chloride electrode
• Infrared window: monocrystalline silicon
• Cathode and cathode inlet and outlet: Yes
• Volume: <20ml needs to be used in conjunction with the supporting optical path
• Crystals: Si (in conventional infrared window materials Ge, ZnSe
and Si, since Ge is relatively active, Cu on the Ge column [23]
and Ag [24-25] thin film electrodes are usually only available at the open-circuit potential
The negative direction obtains a more suitable electrochemical response, while the positive direction
The high anode current of the Ge substrate during bit scanning can obscure the metal electrodes
Electrochemical response, resulting in the shedding of the metal film. Similarly, ZnSe
It is also unstable in acidic and alkaline solutions, making it unsuitable for electrochemistry
Window material for ATR-SEIRAS)
