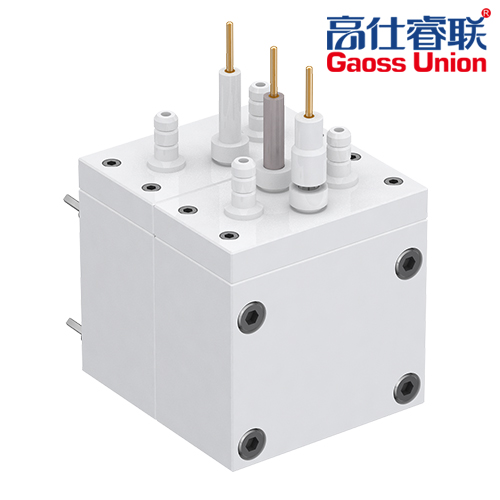

The working electrode, auxiliary electrode and reference electrode of the electrolytic cell can be matched as needed, and the electrodes must be extended.

The cell body material of electrolytic cell is PTFE

The electrolytic cell is often used in three-electrode system.

The volume of electrolytic cell ranges from 30ml to 500ml, and can also be customized according to requirements.

The electrolytic cell is a relatively sealed electrolytic cell system.

The cathode chamber (working electrode) and the anode chamber (comparative electrode) are separated by an ion membrane (user-supplied).

The two chambers are sealed with nails to facilitate the replacement of the diaphragm and reference electrode. It is in the same room as the working electrode to effectively reduce the R drop.

The sealing part of cell body of electrolytic cell is designed with an internal screw port, and the sealing of electrode part is realized on the Teflon cell body, and the sealing effect is achieved by squeezing the O ring with the sealing screw

The electrolytic cell is equipped with a device capable of ventilating under the liquid surface, and the atmosphere is carried out according to different experiments.

The quartz plate of the electrolytic cell can be quickly disassembled and replaced
