Introduction

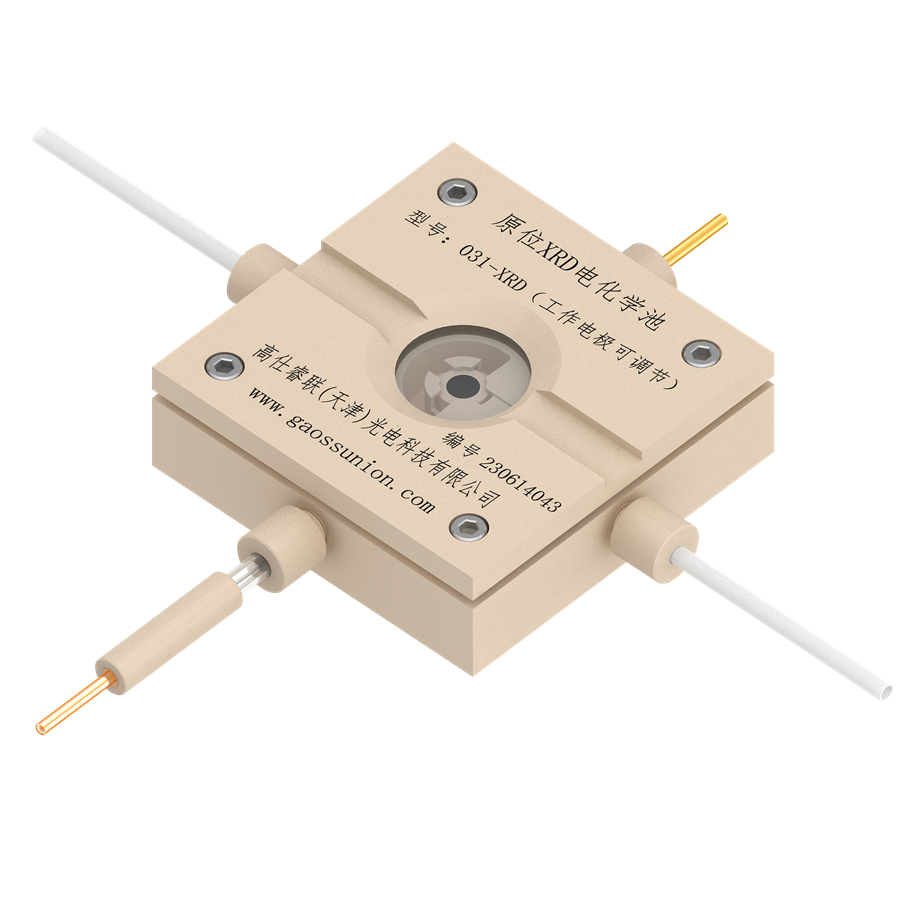

The in-situ electrochemical cell is designed to study the in-situ spectral and morphological changes of electrode materials in electrochemical experiments. The working electrode (WE) is placed just below the perspective window. This allows the optical instrument to see the working electrode through the light window.

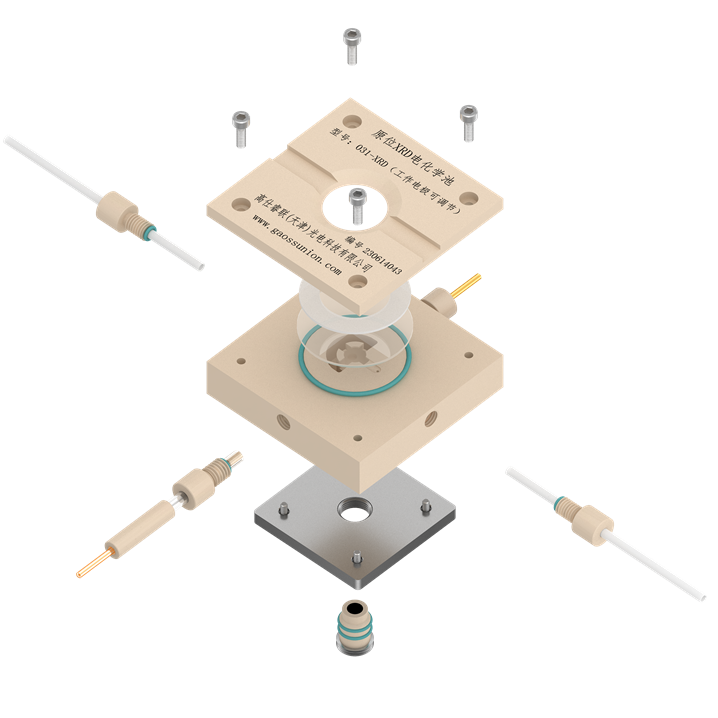

•The main body of the electrochemical cell is made of PEEK and high-purity titanium; It can be quickly assembled and disassembled, and it is easy to clean.
• The cell can be used for in-situ electrochemical testing of flow systems,
It can also be injected to refill the electrolyte succinctly.
•Light Window Material: PI
• Distance between the working electrode and the light window: <6mm
• Standard working electrode is 5mm glassy carbon electrode; Available upon request
Replace disc electrodes such as gold plates, platinum plates, and silver plates (if there is a price difference, you need to make up the price difference)
• Reference electrode (AgCl or Ag+ electrode) and counter electrode (platinum electrode) as standard
