Location:Home > Products > In-situ cells > Electrochemical in situ > In-situ Raman electrolytic cell（For disc electrodes）
Related
Introduction

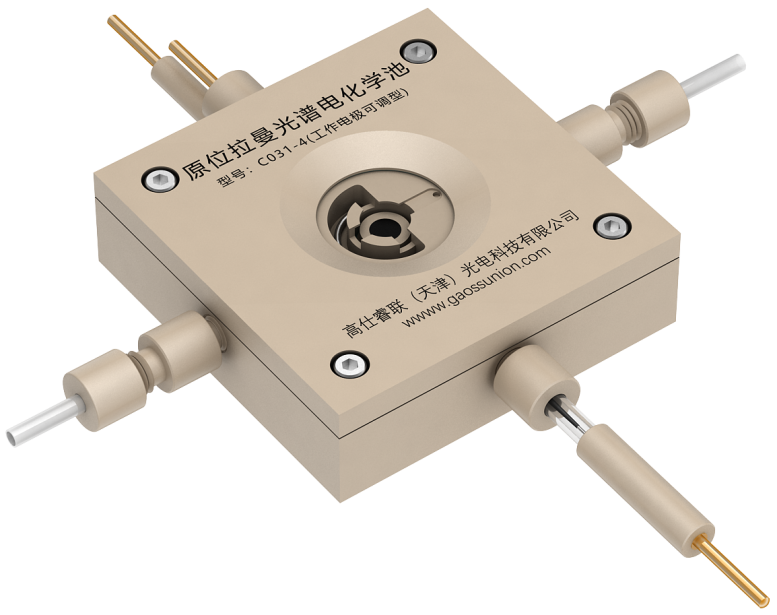

• In-situ electrochemistry cells are designed to study the in-situ spectral and morphological changes of electrode materials in electrochemical experiments. The working electrode (WE) is placed just below the perspective window. This allows the optical instrument to see the working electrode through the quartz window.

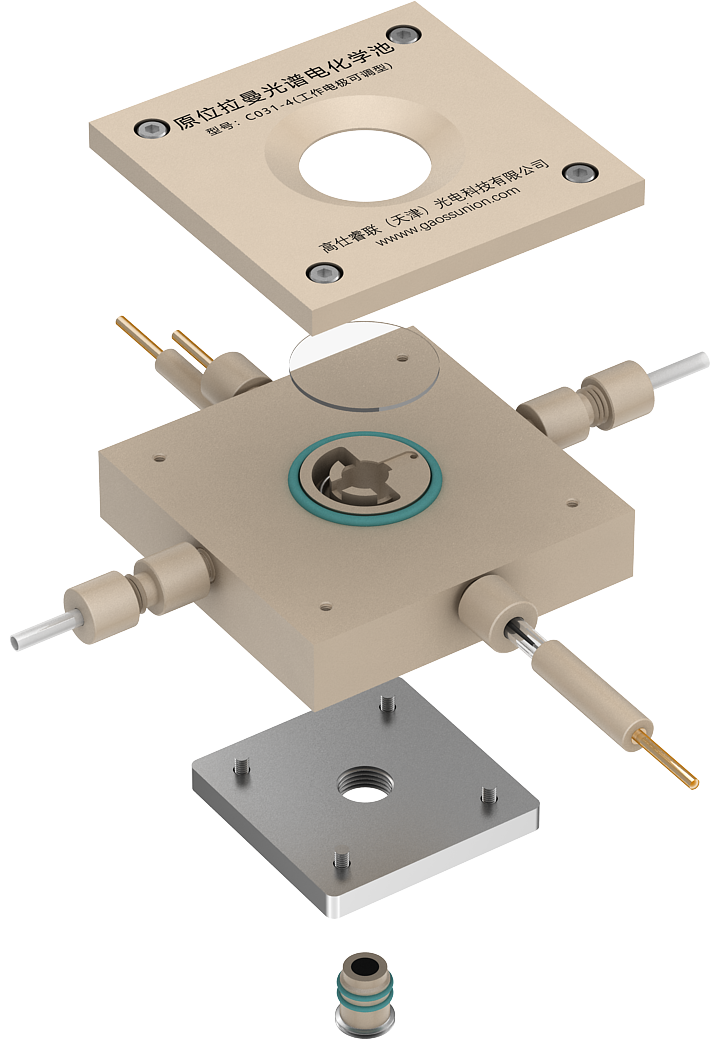

•The main body of the electrochemical cell is made of PEEK and high-purity titanium; It can be quickly assembled and disassembled, and it is easy to clean.
• The cell can be used for in-situ electrochemical testing of flow systems or for simple filling of electrolytes by injection.
• Light window diameter: 25mm
• Distance between the working electrode and the light window: <3mm
• Standard working electrode is 5mm glassy carbon electrode; Disc electrodes such as gold plates, platinum plates, and silver plates can be replaced according to needs (if there is a price difference, the price difference needs to be paid)
• Reference electrode (AgCl or Ag+ electrode) and counter electrode (platinum wire electrode) as standard
